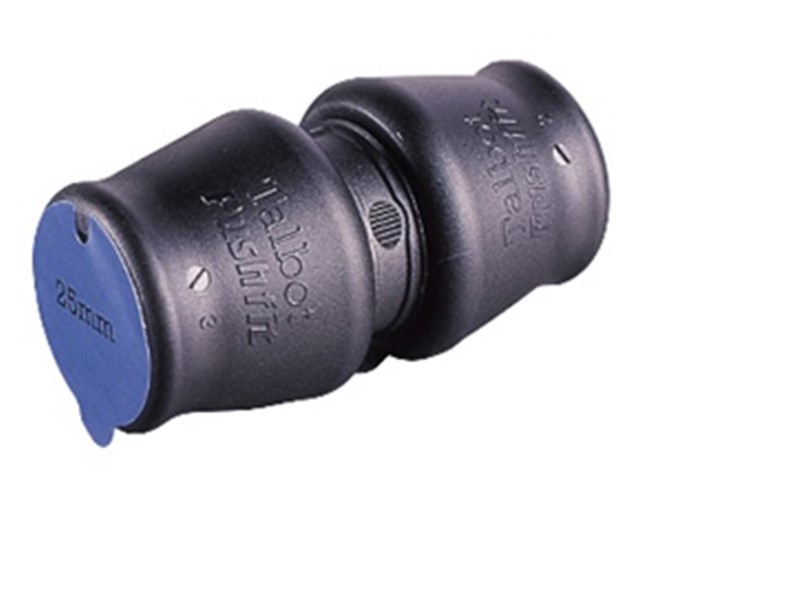

AVK SKJØTEUNION TIL PE-RØR, TALBOT PUSHFIT, PN16
PE x PE rør, lik størrelse, lokk og foringer

Kontakt
AVK Norge AS
Hågasletta 7 3236 Sandefjord
Push fitting for connecting PE pipes of equal size, for vand max. temperature 65°C (short term), 40°C (continuous), 23°C (WRAS approval)
The AVK Talbot Pushfit system is a tried and tested method of connecting low, medium and high density polyethylene water pipes in both metric and imperial sizes. Assembly is quick and easy, no tools needed and no risk of screws or nuts left untightened.
Variant 1907/10-002 | |
---|---|
Kopling/overgang: | "Push-on" Ender |
Materiale: | Plast |
PN: | PN16 |
Funksjoner
- Rask og enkel installasjon. Verktøy ikke nødvendig.
- Quick and easy diassembly with only a simple piece of special extracting tool
- Light weight materials like acetal (POM) or polypropylene (PP)
- Godkjent for drikkevann.
Referansenr. og dimensjoner:
Skroll for mer informasjon
AVK ref.nr. | NRF-nr. | D1 mm |
L mm |
W mm |
Teoretisk vekt / kg |
---|---|---|---|---|---|
1907-020020-10 | 2544006 | 20 | 82 | 43 | 0,1 |
1907-025025-10 | 2544008 | 25 | 93 | 50 | 0,1 |
1907-032032-10 | 2544011 | 32 | 105 | 60 | 0,1 |
1907-040040-10 | 2544013 | 40 | 157 | 69 | 0,3 |
1907-050050-10 | 2544015 | 50 | 186 | 77 | 0,4 |
1907-063063-10 | 2544017 | 63 | 212 | 93 | 0,7 |
Forespørsel
Skroll for mer informasjon

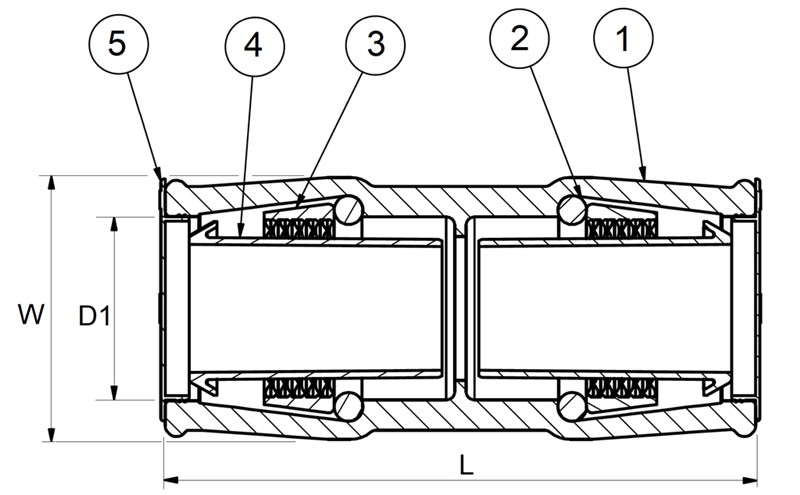

Komponenter
1. | Hus | Polypropylen |
2. | O-ring | EPDM-gummi |
3. | Gripring | POM |
4. | Foring | POM |
5. | Beskyttelseskappe | PE |
Tester/godkjennelser
- WRAS godkjente materialer
